Do I Need A Magnetic Filter On My Boiler?

A magnetic filter can be a useful part of protecting a central heating system.

It is designed to collect magnetic corrosion debris circulating through the heating water before that material continues around the system and reaches important components.

But a magnetic filter is not a complete heating system clean.

It also cannot tell you whether your inhibitor protection is suitable, whether the pH is balanced or whether non-magnetic contamination may be affecting the system.

Testing your heating system water helps you understand the wider picture before deciding what maintenance or cleaning may be needed.

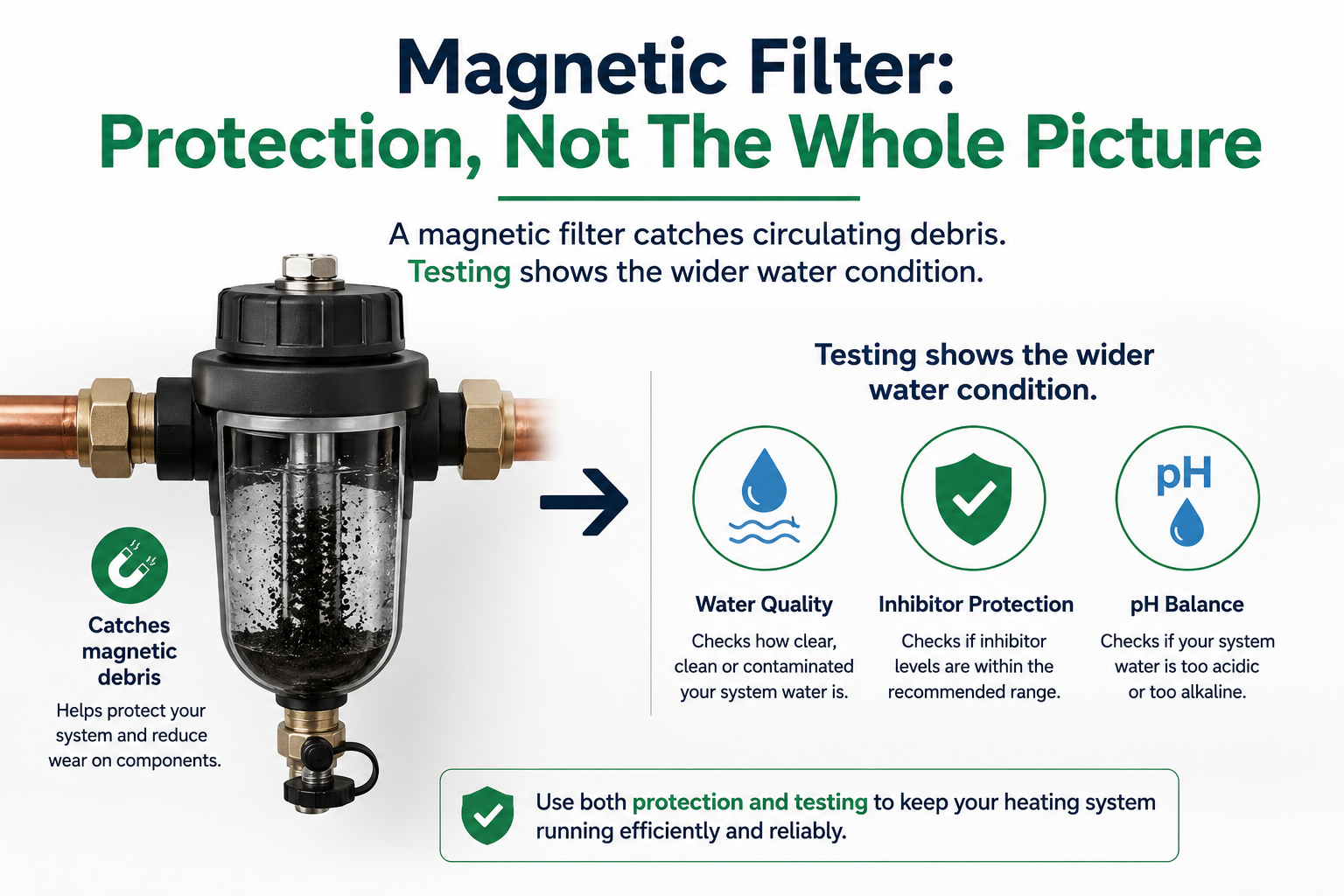

What does a magnetic filter do?

A magnetic filter is fitted into the heating system pipework.

As system water passes through the filter, a magnet helps capture magnetic debris such as magnetite.

Magnetite is a dark corrosion by-product that can form inside heating systems containing steel radiators and other metal components.

By collecting circulating magnetic debris, a magnetic filter can help reduce the amount of material continuing around the system.

Does a magnetic filter clean the whole heating system?

No.

A magnetic filter helps collect debris that reaches it in the circulating water.

It does not automatically remove sludge that has already settled in:

the bottom of radiators
low points in pipework
restricted waterways
valves
poorly circulating sections of the system

If significant contamination has already accumulated, cleaning may still be required.

The right decision depends on the condition of the system.

Can a magnetic filter remove all contamination?

No.

A magnetic filter is designed mainly to collect magnetic debris.

Heating system water condition can involve more than one issue, including:

suspended contamination
corrosion by-products
poor inhibitor protection
pH imbalance
non-magnetic debris
deposits
poor circulation

That is why a magnetic filter should be viewed as one part of good system care rather than a complete answer on its own.

Why is my magnetic filter always dirty?

A dirty magnetic filter may show that it is collecting circulating magnetic debris.

Some collection is exactly what the filter is designed to do.

However, if large amounts of material repeatedly return after the filter has been cleaned, this may suggest that the wider system condition deserves attention.

Possible reasons may include:

ongoing corrosion activity
poor inhibitor protection
existing contamination in radiators and pipework
previous inadequate cleaning
repeated dilution from system top-ups
underlying system water concerns

Testing can help add useful context.

Does a clean magnetic filter mean my heating system water is healthy?

Not necessarily.

A magnetic filter only shows what has reached and been captured by the filter.

It does not directly tell you:

whether inhibitor protection is suitable
whether pH balance is within range
whether system water is cloudy or contaminated
whether sludge is settled elsewhere in the system

A Heating System Health Assessment gives a wider snapshot of system water condition.

How testing works alongside a magnetic filter

The Dr Radiator Heating System Health Assessment checks three important areas.

Water quality

This checks turbidity — how clear, cloudy or contaminated the system water appears.

Poor water quality may suggest suspended contamination or corrosion by-products.

System protection

This checks whether inhibitor protection appears to be within the expected range.

Inhibitor helps reduce corrosion risk and supports longer-term protection.

Water balance

This checks pH balance.

Water that is too acidic or too alkaline may affect system protection and stability.

Together, these checks provide information that a magnetic filter alone cannot provide.

Do I still need inhibitor if I have a magnetic filter?

Yes, these perform different roles.

A magnetic filter helps capture circulating magnetic debris.

Inhibitor is added to system water to help reduce corrosion risk.

One helps collect certain debris. The other helps support chemical protection of the system water.

Having a magnetic filter does not remove the need to check inhibitor protection.

Should I fit a magnetic filter to an already dirty system?

A magnetic filter can help protect a heating system, but fitting one does not automatically clean contamination that has already settled throughout the system.

If the water is heavily contaminated or there are strong signs of sludge, it may be sensible to assess the system first.

Depending on the findings, possible next steps could include:

monitoring
inhibitor correction
a light drain-down and inhibitor refresh
chemical cleaning
CleanFlow
more intensive cleaning
further mechanical investigation

The assessment helps you make the decision based on evidence rather than assumption.

How often should a magnetic filter be checked?

The appropriate maintenance interval can depend on the filter, system condition and manufacturer guidance.

A filter may need more frequent attention when:

the system has recently been cleaned
large amounts of debris are being collected
the system has known contamination issues
circulation problems have been present
maintenance work has recently been completed

The filter should be maintained in accordance with the relevant manufacturer’s instructions.

Can a magnetic filter prevent sludge completely?

No single component can guarantee that sludge will never develop.

Good heating system care may involve:

suitable cleaning where required
correct inhibitor protection
appropriate pH balance
maintaining system pressure and reducing unnecessary top-ups
servicing filters
checking system water condition
investigating leaks or repeated water loss
re-testing after cleaning or treatment

A magnetic filter can be a useful part of this wider approach.

Should I test my system water if I already have a magnetic filter?

Yes.

Testing can provide information that the magnetic filter cannot.

The Dr Radiator assessment helps show:

water quality
inhibitor protection
pH balance
overall heating system water condition
recommended next steps

This helps you understand whether the system appears stable or whether further attention may be useful.

Final answer: do I need a magnetic filter?

A magnetic filter can be a valuable part of heating system protection, particularly for collecting circulating magnetic debris.

But it is not a substitute for understanding the condition of the system water.

It cannot tell you whether inhibitor protection is suitable, whether pH is balanced or whether significant contamination has settled elsewhere.

The best approach is to consider the filter as part of wider heating system care.

Testing your heating system water can help you understand whether monitoring, inhibitor replacement, cleaning or further investigation may be useful.

Start with a Heating System Health Assessment

The Dr Radiator Heating System Health Assessment Kit helps you check your heating system water from home.

Your results are brought together in an online dashboard with clear explanations, recommended next steps, a printable PDF report and completion certificate.

Start Your Heating System Health Assessment →

Concerned about debris or sludge?

If your magnetic filter repeatedly contains heavy contamination, your heating water is dark, or your radiators are performing poorly, use the Get Help Fast form to ask Dr Radiator for guidance.

Get Help Fast →
